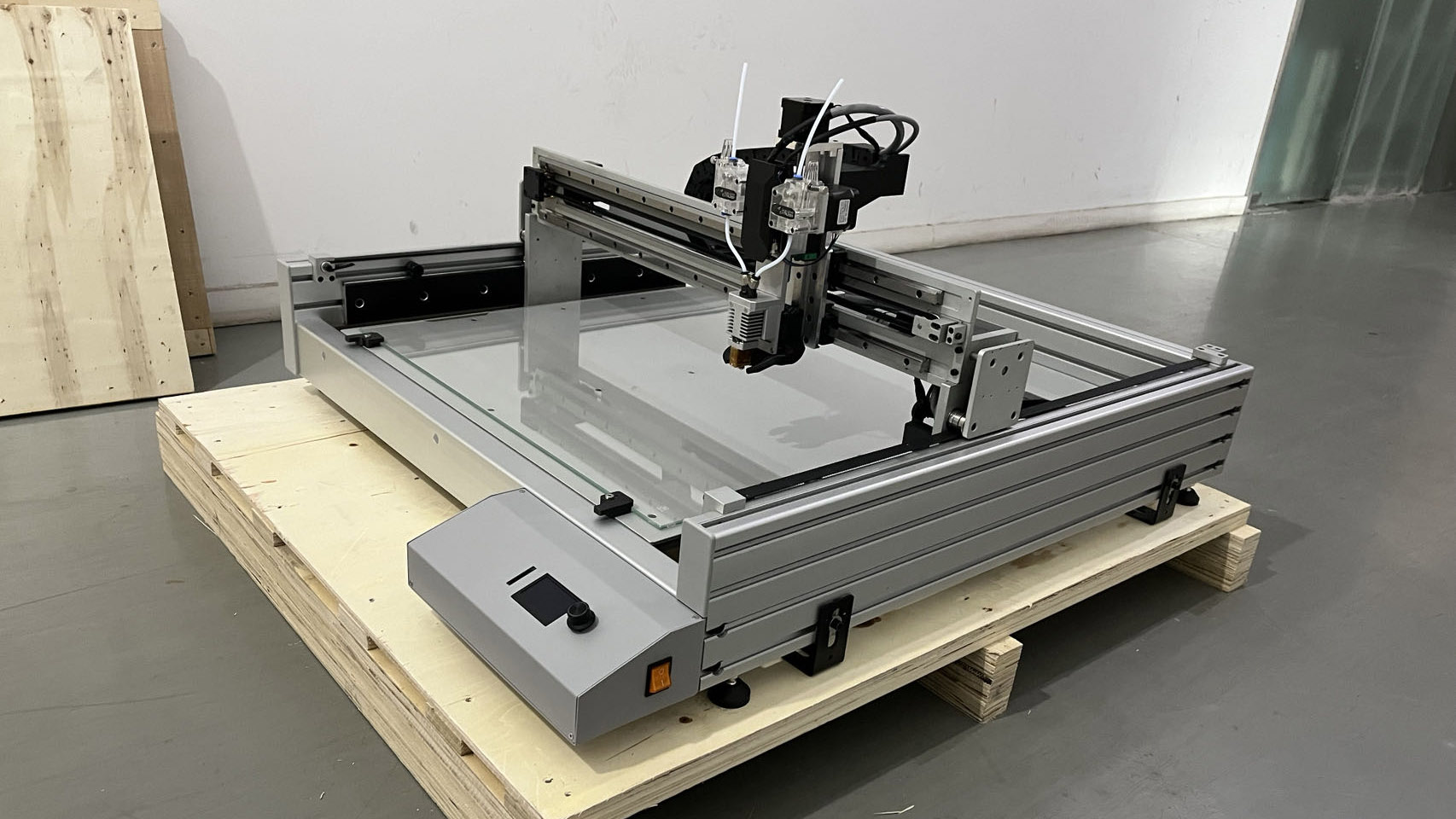

¶ 1. 3D printer × 1

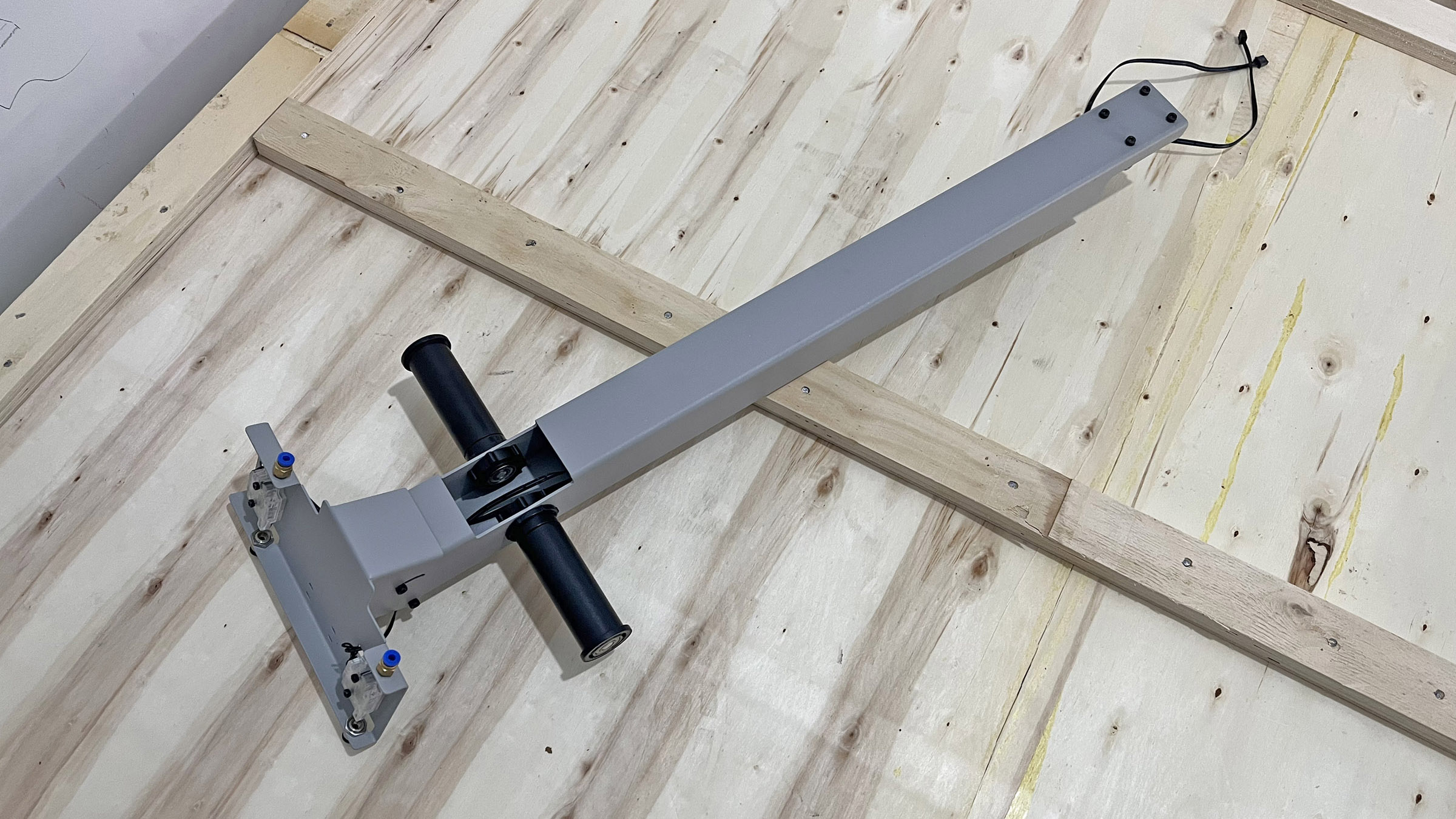

¶ 2. Filament holder × 1

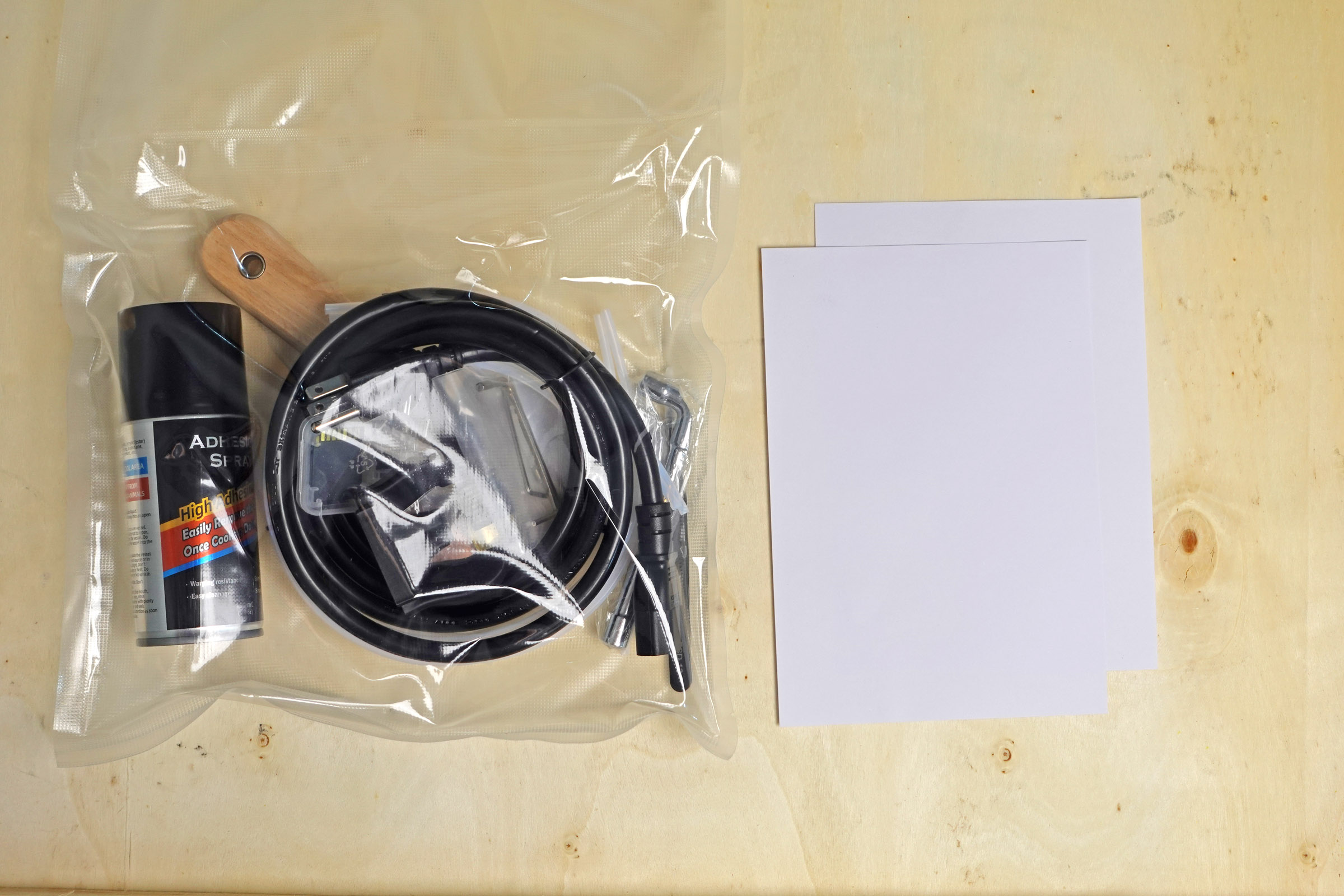

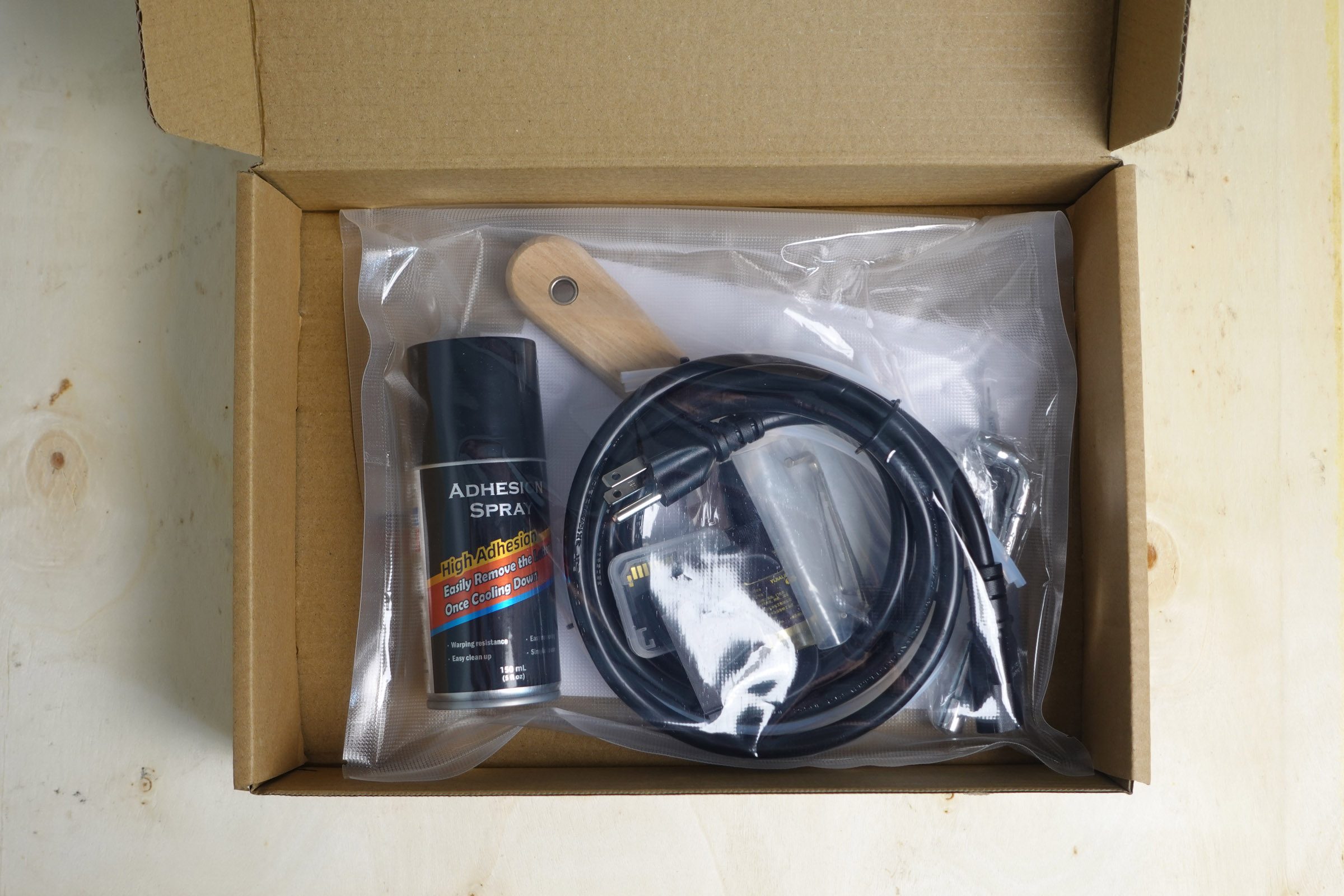

¶ 3. Tool box × 1
 |
 |
¶ Items in the tool box:
|
Num. |
Item |
Specification & Model |
Quantities |
|---|---|---|---|
| 1 | SD Card | SD Card & SD Card Holder | 1 |
| 2 | Scraper knife | 7 inches scraper knife (remove the 3D printed letters) |
1 |
| 3 | Hex wrench | M2, M2.5, M4 (print head maintence) |
3 |
| 4 | Tweezers | (for cleaning the nozzle) | 1 |
| 5 | Spray Adhesion | 150ml (spray it on the build plate) |
1 |
| 6 | Socket spanner | 7mm socket spanner (nozzle installation) |
1 |
| 7 | PTFE tubes | two long tubes and two short tubes (install it between the extruder and spool holder, spool holder and filament spool) |
4 |
| 8 | Lubricating oil | 10ml (X linear guide lubrication) |
1 |
| 9 | Probe (spare part) |
leveling sensor probe (the proble at the bottom of the leveling sensor) |
1 |
| 10 | cooling fan air flue (spare part) |
1 | |
| 11 | Power cord | 1 | |
| 12 | Z offset test card | 120g paper*2 (for measuring a proper distance between the nozzle and build plate) |
2 |
